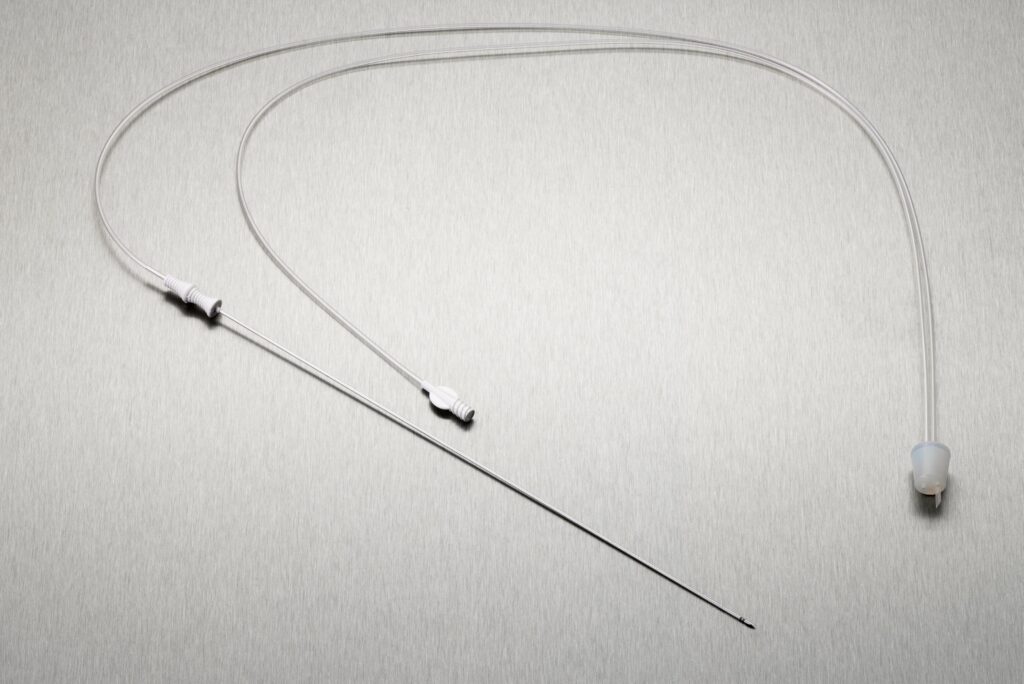

Mona Lisa Aspiration Needle

Mona Lisa^® Aspiration Needles are used for ultrasound-guided transvaginal collection and transport of oocytes from ovarian follicles.

This Follicle Aspiration Needle is a sterile, single-use needle with a double laser mark and two finger control for a better orientation for an enhanced follicle penetration and oocyte retrieval.

Features & Benefits

Lancet shape:
Very sharp through design and polishing
Punctures also with low velocity
Cuts only in line
Double laser mark
Enhances visibility on the echo-screen without disturbing the image
Facet grinding
Combines sharp cutting with the pushing effect of a trocar
Extra safe because no tissue is cut away
Two finger control
Enhances the control of the precision puncture
Bubble
Indicates opening of the needle point
Tubing diameter
Every needle diameter has its own corresponding tubing diameter to avoid turbulence

Product Codes

Product code	G-MN-1,6-A	G-MN-1,6-Short- A	G-MN-1,4-A	G-MN-1,4-Short-A	G-MN-1,4-SP-A	G-MN-1,4-SP-Short-A
Needle length (mm)	380	340	380	340	380	340
Needle diameter (mm) O.D./I.D.	1,6/1,3	1,6/1,3	1,4/1,0	1,4/1,0	1,4/1,2	1,4/1,2
Wall Thickness	0,15	0,15	0,20	0,20	0,10	0,10
Needle – Cork (mm)	750	750	750	750	750	750
Cork (mm)	14x18x22	14x18x22	14x18x22	14x18x22	14x18x22	14x18x22
Cork – Luer lock (mm)	750	750	750	750	750	750
